Eclipse Scout Release Notes

This document is referring to an upcoming Scout release. Please click here for the current version.

About This Release

The latest version of this release is: 26.2.0-beta.3.

You can see the detailed change log on GitHub.

Coming from an older Scout version? Check out the Migration Guide for instructions on how to obtain the new version and upgrade existing applications.

Stateless Backend Server

The Scout backend server was migrated into a stateless architecture without requiring an HTTP- and Scout server session any longer. In a cloud environment a backend server now supports dynamic horizontal scaling which increases fault tolerance, improves overall reliability and adds flexibility for updates and deployments in a high availability setup.

During a transition period, session support will be provided in separate modules for legacy purposes, see migration guide for details.

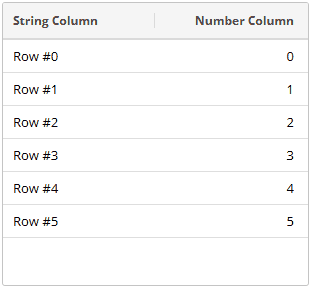

Drag & Drop for Table Rows

The Table widget can now let users move a row to a different position by simply dragging it with the mouse.

Detailed information on how to use this in your own application can be found in the Technical Guide.

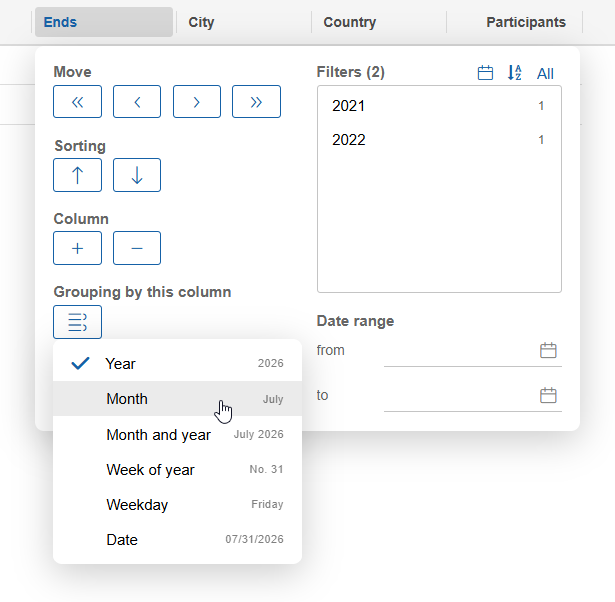

Enhanced Grouping of Date Columns

So far, date columns in tables have always been grouped by year. Now the user can adjust the grouping type, similar to what is already possible with table charts. The chosen grouping type is saved in the column settings and bookmarks. The same configuration option is now also available in the associated column filter.

Reload Key Stroke for Outline

If a user wishes to recreate a page (e.g. because its content has changed but the page has not been refreshed), they can usually just reload the detail table of the parent page, e.g. by pressing F5.

However, an outline typically does not have a root page, so this is not possible for top-level pages. To support this case, F5 can now be pressed even if no page is selected. When it is pressed, the top-level nodes are reloaded which in-fact reloads the whole outline. To deselect a page, just click on the outline title.

The keystroke is active only for remote outlines (Scout Classic).

Locking of Transitive Node Dependencies

To mitigate supply chain attacks and ensure reproducible builds, Scout now provides support to lock the Node.js dependencies.

See the Technical Guide for details and the Migration Guide for instructions how to enable the feature.

Value Field: Async Validator Support Added (Scout JS)

A validator can now be asynchronous by returning a promise. This can for example be used to call a rest resource that validates the user input.

Please see the Technical Guide for details.

Table: Column Formatter Added (Scout JS)

The Column now has a formatter property similar to the one of the ValueField.

This makes it possible to change the format function without having to subclass the column.

Tree: FindNode Added and VisitNodes Improved (Scout JS)

Finding tree nodes may be helpful especially for outlines to find a specific page. This can now be done using the new function Tree.findNode() that either takes a predicate or a subclass of TreeNode as argument.

The function uses the existing visitNodes function to search for the tree node. Unfortunately, that function does not have the possibility to abort the traversal at any point. To support this, it now uses the TreeVisitResult, so you can now either skip visiting a subtree or stop visiting completely. To make it consistent with other visitor functions like Widget.visitChildren, returning true now stops visiting completely instead of just skipping the subtree.

This means you need to check your visitors according to the Migration Guide.

HybridManager API Improvements (Scout JS)

Widgets that have been created by the HybridManager are now disposed automatically on the UI server when the widget is destroyed using widget.destroy(). Internally, it uses the new API method HybridManager.disposeWidgets which collects and disposes multiple widgets in a single hybrid action.

HybridManager.get().disposeWidgets(widgets);

Please see the Migration Guide for update instructions.

Tab Box: Mark Strategy Added (Scout JS)

The Scout JS TabBox now supports marking the tab items that have content or need to be saved, like the Scout Classic TabBox already does. A marked tab item has a slightly darker line below its tab.

You can choose between two strategies:

NOT_EMPTY: Marks a tab item if it is not empty.
SAVE_NEEDED: Marks a tab item if it needs to be saved.

The default strategy is NOT_EMPTY. For tab boxes inside a Search Form it is SAVE_NEEDED.

FormField: Empty Property now Reflects the State of its Children (Scout JS)

FormField.empty is now computed based on the empty state of its child fields and not only considers the empty state of the field itself. This is useful for composite fields that don’t have its own empty state like GroupBox.

ValueField s are not affected because they still only consider their own empty state, so they are empty if they don’t have a value.

To influence or disable the computation of the empty property, you can set the property checkEmpty or override the method _computeEmpty(). Please see the JsDoc of the FormFieldModel.checkEmpty for details.

AbortableContext (Scout JS)

When working with rest requests, it is often necessary to abort previously created requests again. Since requests made with Scout JS are typically created using ajax, the developer does not have access to the abortable call. As a result, standard mechanisms such as an AbortController cannot be used to abort these calls.

To address this issue, the abortableContext was introduced. It allows code to be executed within the scope of an AbortController. All abortable elements that are registered while this context is present may then be aborted using the AbortController.

In addition, all calls created using the ajax utility automatically register themselves in the current context, if there is one.

protected async _loadFooAndBarAbortable(id: string | number, abortController: AbortController): Promise<{ foo: object, bar: object }> {
  return await abortableContext.runInContext(
    () => this._loadFooAndBar(id),
    abortController
  );
}

protected async _loadFooAndBar(id: string | number): Promise<{ foo: object, bar: object }> {
  // if run inside an abortableContext the ajax calls are auto registered
  const fooPromise = ajax.getDataObject(`api/foo/${id}`);
  const barPromise = ajax.getDataObject(`api/bar/${id}`);

  return {
    foo: await fooPromise,
    bar: await barPromise
  };
}

Other abortables can be registered in the current context using abortableContext.registerAbortableInCurrentContext(abortable). If one creates a new abortable context while running inside another abortable context, the inner context is registered in the outer one to ensure that the inner context is aborted when the outer context is aborted.

const outerController = new AbortController();
abortableContext.runInContext(
  () => {
    const innerController = new AbortController();
    abortableContext.runInContext(
      () => {
        const innerAbortable = new MyAbortable();
        abortableContext.registerAbortableInCurrentContext(innerAbortable);
      },
      innerController
    );
  },
  outerController
);

// aborts the innerController and therefore the innerAbortable as well
outerController.abort();

PageWithTable: Abortable Loading (Scout JS)

The PageWithTable now supports abortable loading. To support this, PageWithTable runs _loadTableData(searchFilter) within an abortable context. For a typical implementation where data is loaded via rest, the call is registered automatically.

protected override _loadTableData(searchFilter: any): JQuery.Promise<any> {
  return ajax.postDataObject('api/foo/list', this._withMaxRowCountContribution(searchFilter));
}

As only synchronously created calls are registered automatically, implementations that make several calls subsequently must create new abortable contexts for each asynchronously created rest call to ensure all calls are aborted correctly. If this is not done, the PageWithTable will still behave correctly, i.e. will not show resulting data when loading was aborted. So creating a new abortable context for a subsequent call is not necessary for the user experience but prevents unnecessary calls being made. To create such a new abortable context all implementations of PageWithTable can use the protected member _abortController.

protected override _loadTableData(searchFilter: any): JQuery.Promise<any> {
  return $.when(this._loadTableDataAsync(searchFilter));
}

protected async _loadTableDataAsync(searchFilter: any): Promise<any> {
  const abortController = this._abortController;
  const searchRestrictions = await ajax.postDataObject('search-api/util/build-search-restrictions', this._withMaxRowCountContribution(searchFilter));
  const foos = await abortableContext.runInContext(
    () => ajax.postDataObject('api/foo/list', {searchRestrictions}),
    abortController
  );
  return foos;
}

DataObjectVisitors (Scout JS)

A utility to visit data objects in Scout JS was added. dataObjectVisitors can be used to recursively visit any object and e.g. execute a callback for all occurrences of an explicit BaseDoEntity.

Listing 1. Finds and logs all occurrences of BarDo in the given FooDo.

dataObjectVisitors.forEachRec(
  fooDo,
  c => c instanceof BarDo,
  barDo => console.log(dataObjects.stringify(barDo))
);

Local Lookup Calls: Search the Whole Text

For local lookup calls (LocalLookupCall.java and StaticLookupCall.ts), wildcards ar inserted at the beginning and end of the lookup text so that the whole text is searched instead of only the beginning. This way, they are unified with the implementation in LookupHelper.createTextSearchPattern.

REST HTTP Client: Increased Connection Limits

The default connection pool limits of the REST HTTP client were increased to support applications with higher number of concurrent outbound requests.

Maximum total connections (scout.rest.client.http.maxConnectionsTotal): 128 → 512
Maximum connections per route (scout.rest.client.http.maxConnectionsPerRoute): 32 → 128

This change improves throughput and reduces the likelihood of requests being queued or delayed when many REST calls are executed concurrently.

FileChooserFactory

Creation of FileChooser instances is now centralized through the new FileChooserFactory.

Instead of instantiating a FileChooser directly using new FileChooser(…), applications can obtain a file chooser via:

BEANS.get(FileChooserFactory.class).createFileChooser();

This provides a single extension point for customizing and replacing file chooser creation.
